Securing credentials in Azure-hosted applications using managed identities and Azure Key Vault - Implementing Azure Key Vault

In this post, we’ll explore how to strengthen the security of our web applications when accessing credentials for resources hosted outside of Azure.

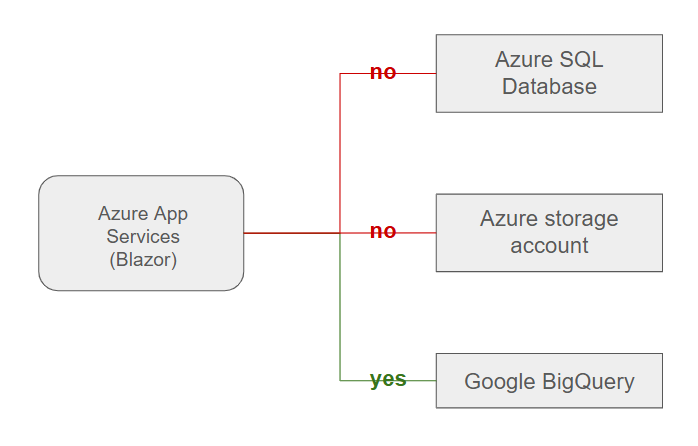

We are therefore considering a scenario where a web application (such as a Blazor app) is hosted in Azure App Services and needs to access resources hosted outside of Azure (e.g. BigQuery).

Throughout this post, to illustrate our concepts, we will continue working with the Blazor application we developed in the previous posts.

What is the problem ?

In our scenario, the web application needs to access resources that are hosted outside of Azure. Since these external resources—such as BigQuery, which is hosted on GCP—are not managed by Microsoft, they are not registered in Microsoft Entra ID. As a result, we can no longer rely on the managed identities approach described in the previous post.

Does this mean that we cannot securely store credentials in this case ? Absolutely not ! Microsoft provides a solution called Azure Key Vault specifically for this purpose.

What is Azure Key Vault ?

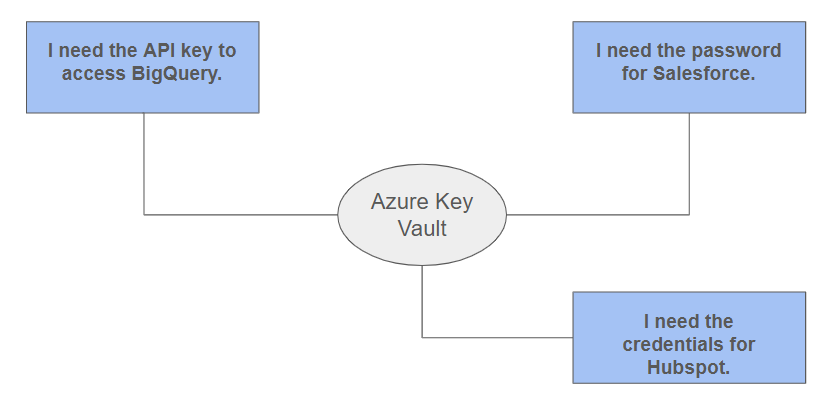

Azure Key Vault is a cloud service offered by Microsoft Azure that provides a secure and centralized way to manage sensitive information such as secrets (e.g. API keys, passwords, connection strings), encryption keys (used for encrypting data) or certificates.

Additionally, we can leverage Azure Role-Based Access Control (RBAC) and Microsoft Entra ID to precisely manage who or what can access the secrets stored in the vault. This means, for example, that a developer can be denied direct access to the vault in a production environment, while still allowing their applications to access it seamlessly.

How can it be used in our Blazor app ?

Creating a new resource in Azure

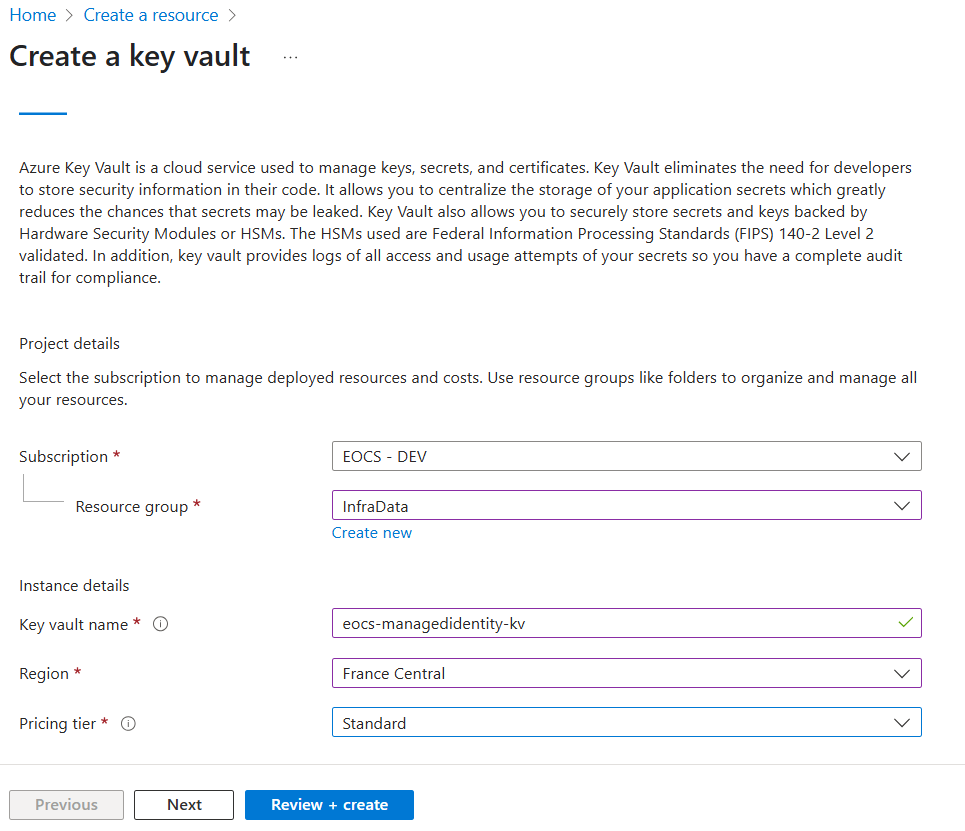

• Navigate to the Azure portal and create a new instance of Azure Key Vault.

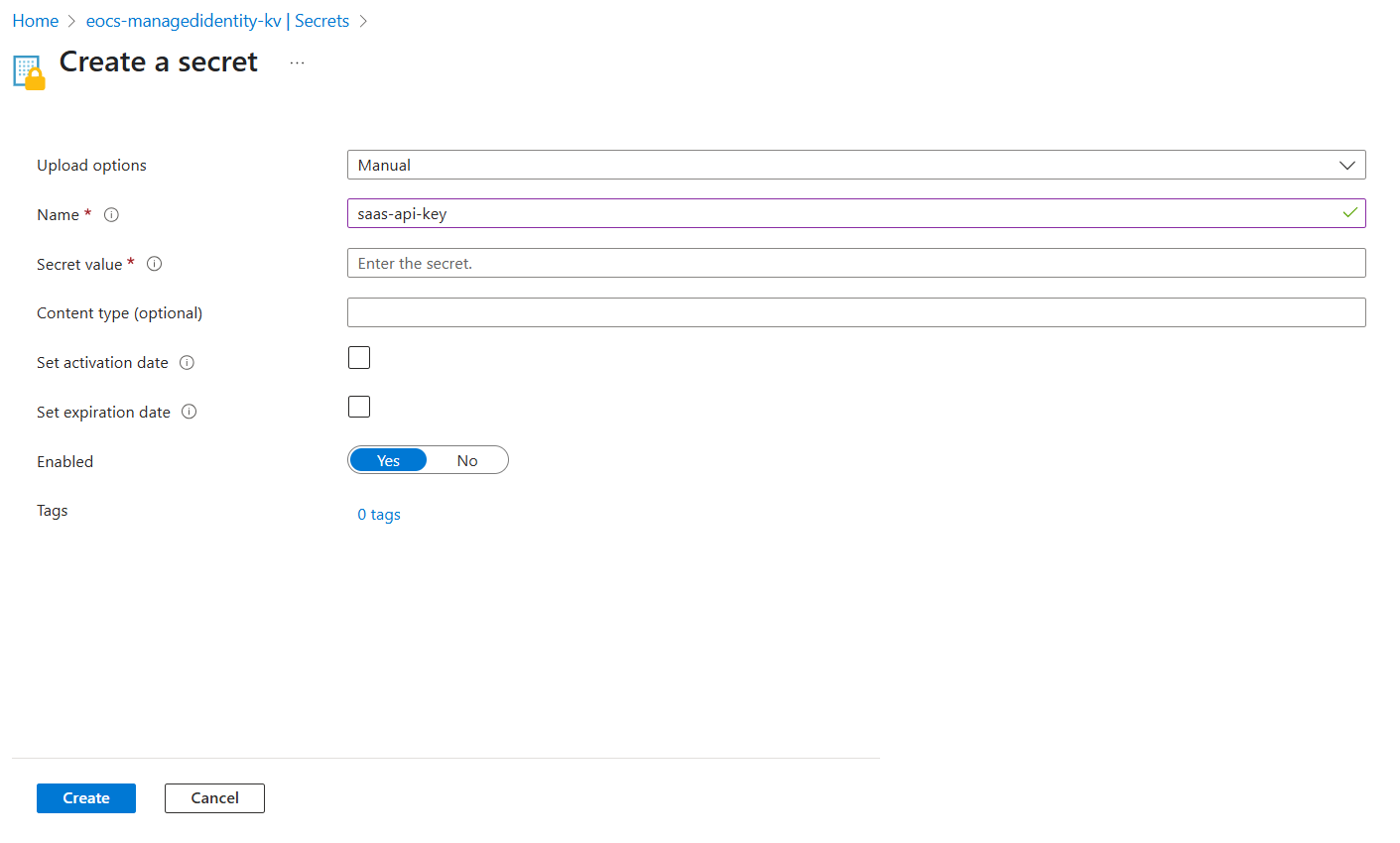

• Add a new secret in the vault named saas-api-key for example.

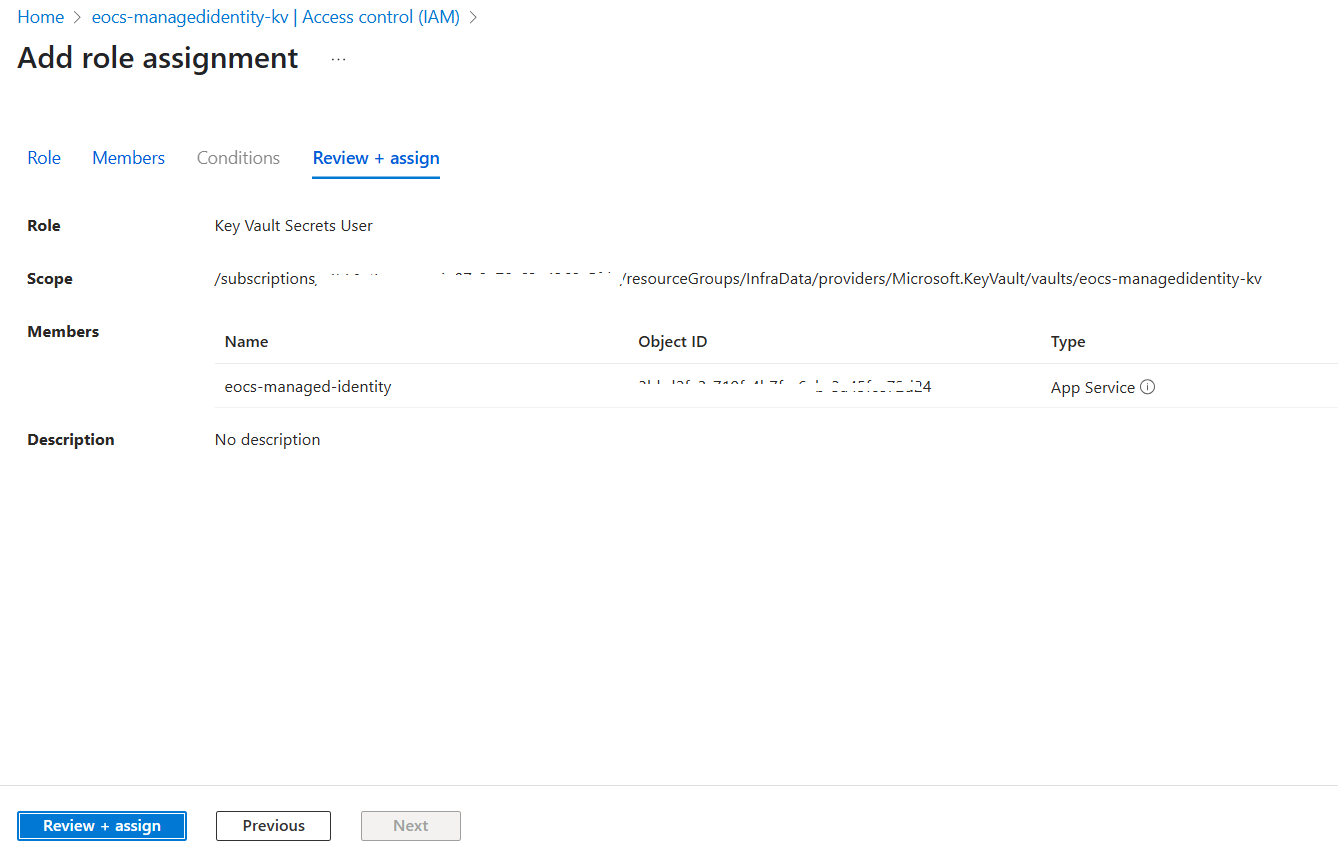

• Grant access to the Key Vault using managed identities (with the Key Vault Secrets User role).



Modifying the code in Visual Studio

Finally, we need to update the code in Visual Studio to retrieve the necessary credentials. In our case, we are considering a hypothetical scenario where we need to retrieve an API key to connect to a SaaS application.

• Modify the appsettings.json file to include the URL of the Azure Key Vault.

 1{
 2  "Logging": {
 3    "LogLevel": {
 4      "Default": "Information",
 5      "Microsoft.AspNetCore": "Warning"
 6    }
 7  },
 8  "AllowedHosts": "*",
 9  "StorageConnectionString": "https://eocsmanagedidentity.blob.core.windows.net",
10  "KeyVaultUrl": "https://eocs-managedidentity-kv.vault.azure.net/"
11}

We simply add a new key to the file and specify the URL of the Azure Key Vault that was created earlier.

• Create a new class named KeyVaultService.cs and add the following code to it.

 1public class KeyVaultService
 2{
 3    private readonly string _keyVaultUrl;
 4
 5    public KeyVaultService(IConfiguration config)
 6    {
 7        _keyVaultUrl = config["KeyVaultUrl"];
 8    }
 9
10    public async Task<string> GetStringAsync(string secretName)
11    {
12        SecretClientOptions options = new()
13        {
14            Retry =
15            {
16                Delay= TimeSpan.FromSeconds(2),
17                MaxDelay = TimeSpan.FromSeconds(16),
18                MaxRetries = 5,
19                Mode = RetryMode.Exponential
20             }
21        };
22        var client = new SecretClient(new Uri(_keyVaultUrl), new DefaultAzureCredential(), options);
23
24        var secret = await client.GetSecretAsync(secretName).ConfigureAwait(false);
25
26        return secret.Value.Value;
27    }
28}

This code simply leverages a native C# library to access the Azure Key Vault and retrieve stored secrets.

• Register the service (in Program.cs).

1builder.Services.AddSingleton<KeyVaultService>();

• Update the Counter.razor to retrieve the secrets.

 1@page "/counter"
 2@rendermode InteractiveServer
 3@inject EOCS.ManagedIdentity.Web.Components.Services.BlobService BlobService
 4@inject EOCS.ManagedIdentity.Web.Components.Services.KeyVaultService KeyVaultService
 5
 6<PageTitle>Counter</PageTitle>
 7
 8<h1>Counter</h1>
 9
10<p role="status">Current count: @currentCount</p>
11
12<button class="btn btn-primary" @onclick="IncrementCount">Click me</button>
13
14<label>@errorMessage</label>
15
16@code {
17    private int currentCount = 0;
18    private string errorMessage = "";
19
20    private async Task IncrementCount()
21    {
22        currentCount++;
23
24        try
25        {
26            var secretName = "saas-api-key";
27            var v = await KeyVaultService.GetStringAsync(secretName).ConfigureAwait(false);
28            errorMessage = $"The secret key is '{v}'.";
29
30        }
31        catch (Exception ex)
32        {
33            errorMessage = ex.Message;
34        }
35    }
36}

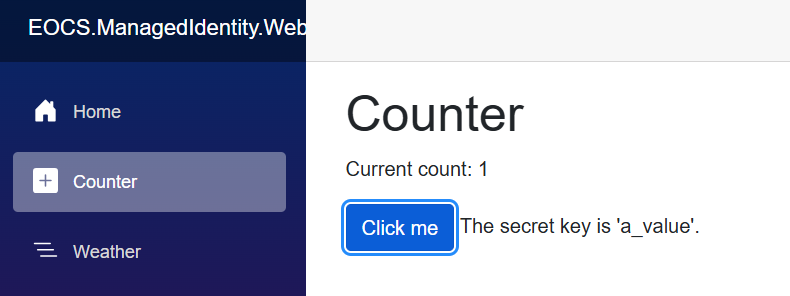

Running the program

All that remains is to deploy this application to Azure and test it (in a real-world application, the retrieved key would be used to connect to a SaaS service and would never be exposed).

Final thoughts

If you wish to delve deeper into this topic, acquire the following book, which encompasses all the concepts emphasized in this series and delve into more advanced ones.

Learning Microsoft Azure: Cloud Computing and Development Fundamentals (Andersson))

Do not hesitate to contact me shoud you require further information.
