Building a content-based recommendation system with the tf-idf algorithm - Part 3

In this post, we will introduce a widely adopted approach to perform content-based filtering—the tf-idf algorithm.

A first approach

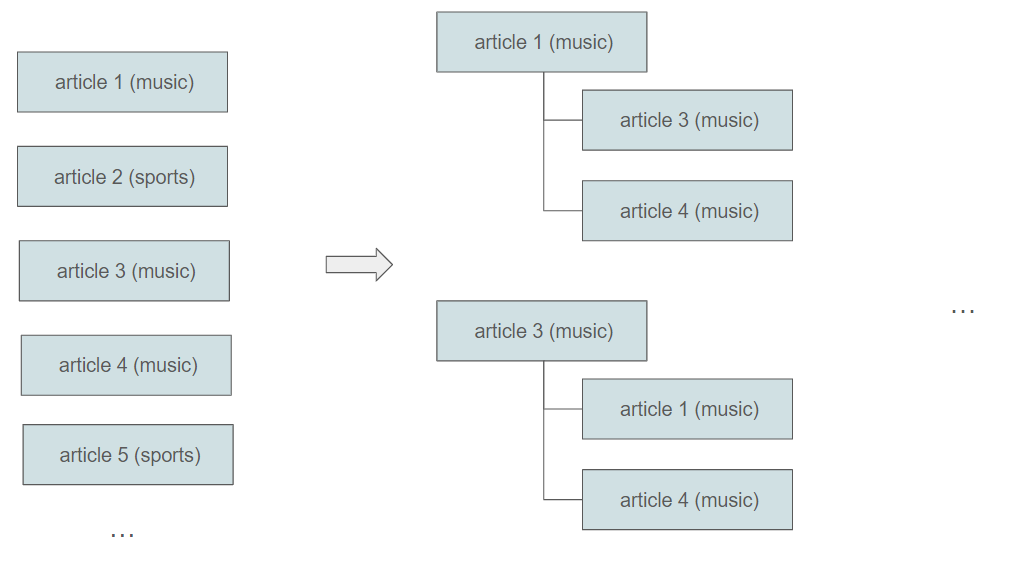

In our dataset, each article possesses various significant attributes, including tags that signify the general topic of the item. While one approach could involve grouping articles based on these tags and recommending items from the same group for a given item, this method has its limitations. It is relatively straightforward to implement but may be somewhat naive due to several reasons. Firstly, tags can be either empty or inaccurate. Secondly, it doesn't consider the actual content of the articles. Lastly, it doesn't provide a ranking within a specific group, leaving the question unanswered: among 20 articles in the same topic, which 5 are the most relevant?

In our example, an article has the tags "computer, elderly, fifty". While "computer" might be a general and suitable tag, "elderly" and "fifty" are likely too specific and may not accurately define the article.

Additionally, this technique requires manual intervention as we need to tag each article manually with the corresponding attributes. This process can be time-consuming and lacks automation and so we should resort to other techniques.

A second approach

We will now introduce the venerable tf-idf algorithm, which addresses nearly all the issues mentioned earlier.

What is the tf-idf algorithm ?

The term frequency–inverse document frequency (tf-idf) algorithm is a numerical statistic that reflects the importance of a word in a document relative to a collection of documents, known as a corpus. It is commonly used in natural language processing and information retrieval to evaluate the significance of a term within a document.

The tf-idf algorithm relies on two key principles and common sense:

First intuition

The more frequently a term appears in a specific document, the more likely it characterizes the content of that document. For instance, if the term "computer" is repeated 10 times in a particular document, it suggests that the document is likely to be about computers.

Second intuition

The more widespread a term is across all documents, the less discriminatory it is. For example, common English terms like "the" or "and" may appear in almost all documents, but they lack informative value about the specific focus of a document.

The first intuition is mathematically expressed through the term frequency (tf), while the second intuition is captured by the inverse document frequency (idf).

Compute the term frequency (tf)

This measures how frequently a term $t$ appears in a specific document $d$. It is calculated as the number of occurrences of a term $t$ in a document $d$ divided by the total number of words in that document.

$$tf_{t,d}=log(1 + \dfrac{\text{number of times term } t \text{ appears in document }d}{\text{total number of terms in document }d})$$

Please note that there are various accepted formulas for calculating term frequency. Here, we are employing log normalization. ​

Compute the inverse document frequency (idf)

This quantifies how unique or rare a term $t$ is across all documents in the corpus. It is calculated as the logarithm of the total number of documents divided by the number of documents containing the term.

$$idf_{t}=log(\dfrac{\text{total number of documents in corpus}}{\text{number of documents containing term }t})$$

Important

If a term $t$ is present in all documents, then $idf_{t}=0$.

Compute the tf-idf score

The tf-idf score for a term $t$ in a specific document $d$ is obtained by multiplying its term frequency (tf) by its inverse document frequency (idf).

$$\boxed{tfidf_{t, d}=tf_{t,d} . idf_{t}}$$

The resulting tf-idf scores provide a measure of the significance of each term within a document in relation to the entire corpus. Higher scores indicate terms that are important within a specific document but relatively rare across the entire collection.

If a term $t$ is present in all documents, then $idf_{t}=0$ and so $tfidf_{t, d}=0$. Hence, common words, often referred to as stop-words (in jargon), such as "the" or "and" will have a score of zero, signifying that they are non-discriminative and, therefore, not considered important. The advantage of tf-idf is that there is no need for preprocessing, such as eliminating these stop-words, before applying the algorithm.

Give me an example, please !

We will consider the following corpus (3 documents).

document 1document 2document 3
Microsoft Corporation, commonly known as Microsoft, is an American multinational technology company that produces, licenses, and sells computer software, consumer electronics, and other personal computing and communication products and services. Microsoft is one of the world's largest technology companies, founded by Bill Gates and Paul Allen in 1975.Amazon.com, Inc. is an American multinational technology and e-commerce company based in Seattle, Washington. Founded by Jeff Bezos in 1994, Amazon started as an online bookstore and has since diversified into various product categories and services. It is one of the world's largest and most influential technology companies.Renault is a French multinational automotive manufacturer established in 1899. The company produces a range of vehicles, from cars and vans to trucks and buses. Renault is known for its diverse lineup of vehicles and has a significant presence in the global automotive market. The company has been involved in various collaborations and partnerships with other automakers over the years. Additionally, Renault has a strong presence in motorsports and has achieved success in Formula One racing.

There are 48 words in document 1, 49 words in document 2 and 76 words in document 3.

tf-idf for the term "american"

$tf_{american,1}=log(1+\dfrac{1}{48})=0.0089$ (american appears once), $tf_{american,2}=log(1+\dfrac{1}{49})=0.0088$ (american appears once) and $tf_{american,3}=log(1+\dfrac{0}{76})=0$ (american is not present).

$idf_{american}=log(\dfrac{3}{2})=0.1761$

Thus, $tfidf_{american,1}=(0.0089)(01761)=0.0016$, $tfidf_{american,2}=(0.0088)(01761)=0.0015$ and $tfidf_{american,3}=0$. The document 3 is inadequately represented by this term, aligning with both intuition and reality (Renault is a French company). Conversely, it aptly characterizes the other documents (Microsoft and Amazon are American companies).

tf-idf for the term "automotive "

$tf_{automotive ,1}=log(1+\dfrac{0}{48})=0$, $tf_{automotive ,2}=log(1+\dfrac{0}{49})=0$ and $tf_{automotive ,3}=log(1+\dfrac{2}{76})=0.0113$ (automotive appears twice).

$idf_{automotive}=log(\dfrac{3}{1})=0.4771$

Thus, $tfidf_{automotive,1}=0$, $tfidf_{automotive,2}=0$ and $tfidf_{automotive,3}=(0.0113)(0.4771)=0.0054$. "automotive" stands out as a discriminative term, aligning once again with intuition.

tf-idf for the term "and"

The term "and" appears in all the documents, so $idf_{and}=0$ and thus $tfidf_{and,1}=tfidf_{and,2}=tfidf_{and,2}=0$. It reaffirms that there is no value in indicating the presence of the word "and" in each document.

Yes, but what does tf-idf have to do with recommendations ?

We assume that readers are familiar with some mathematics, particularly vectors and vector spaces. Let $N$ represent the number of distinct terms in all the documents (in the corpus) and let's consider the vector space $\mathbb{R}^{N}$.

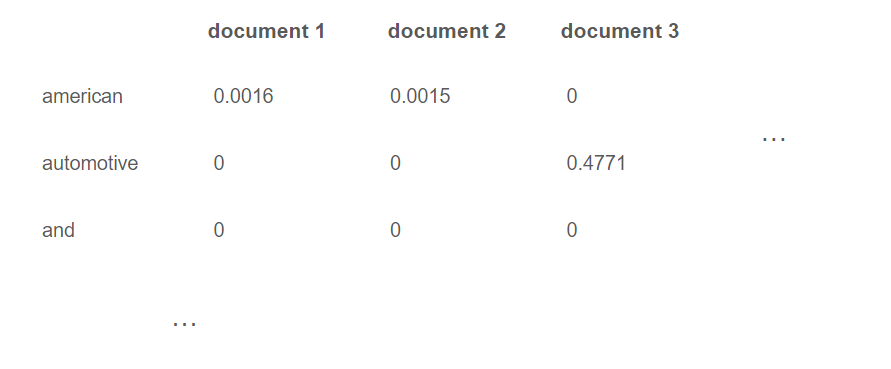

For each document, we will construct a vector in $\mathbb{R}^{N}$, where the $i$th component is the tf-idf score for the $i$th term in that document. As an illustration, let's examine how it works for our previous example with three documents.

Hence, the mathematical problem involves identifying, in an $N$-dimensional vector space, the 5 most similar (nearest) vectors to the current one. This requires introducing the concept of similarity, and, there are several ways to define this notion.

For information

This method of utilizing vectors to represent documents in a vector space is referred to as the vector space model in the litterature.

Jaccard similarity

The Jaccard similarity measures the similarity between two sets or two vectors. It is defined as the size of the intersection of the sets divided by the size of their union. In mathematical terms, if $A$ and $B$ are two sets, the Jaccard similarity $J(A,B)$ is $J(A,B)=\dfrac{\text{|}A\cap B\text{|}}{\text{|}A\cup B\text{|}}$.

The result is a value between 0 and 1, where 0 indicates no similarity (no common elements) and 1 indicates identical sets.

Cosine similarity

Cosine similarity is a measure of similarity between two non-zero vectors in an inner product space that measures the cosine of the angle between them.

Given two vectors $A$ and $B$, the cosine similarity $S(A,B)$ is calculated using the dot product of the vectors and their magnitudes.

$$S(A,B)=\dfrac{A.B}{\lVert A\rVert \rVert B\rVert}$$ ​ Here, $A.B$ is the dot product of vectors $A$ and $B$, and $\rVert A\rVert$ and $\rVert B\rVert$ are the magnitudes (Euclidean norms) of vectors $A$ and $B$, respectively.

In our case, the cosine similarity ranges from 0 to 1, where 1 indicates that the vectors are pointing in the same direction, 0 indicates orthogonality (no similarity). In content-based recommendation, higher cosine similarity values between item feature vectors suggest greater similarity between items.

Equipped with this understanding of the mathematical aspects, we are now prepared to delve into the practical implementation, which will be the focus of the next post.
